Very high dynamic load capacity
Excellent cross-axis control
Long stroke and low Frequency testing
High CG test articles like Satellite testing

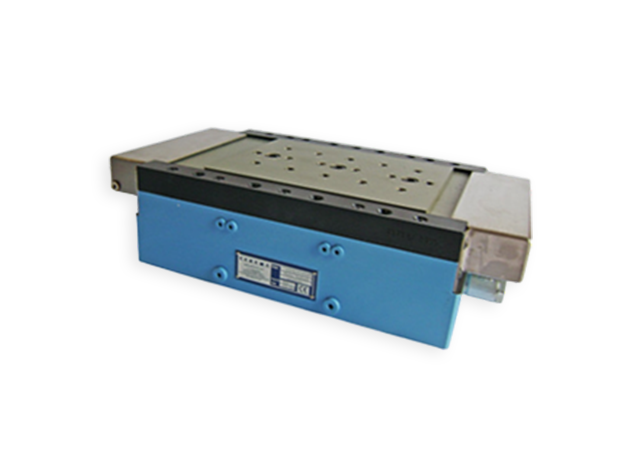

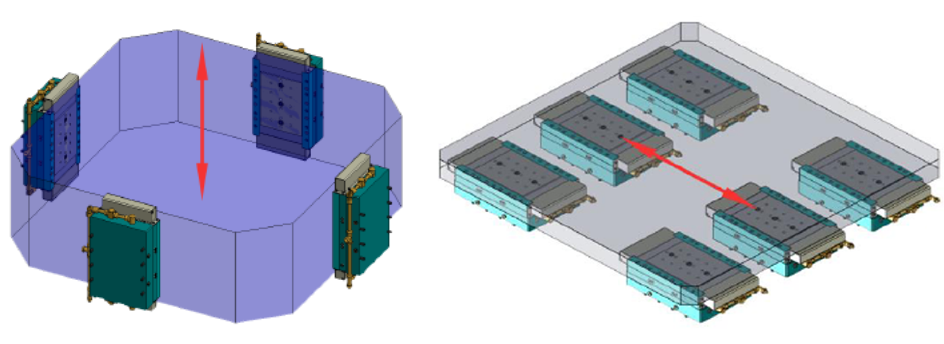

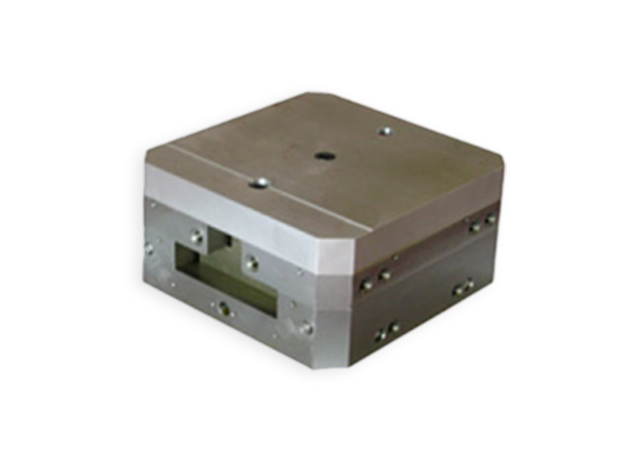

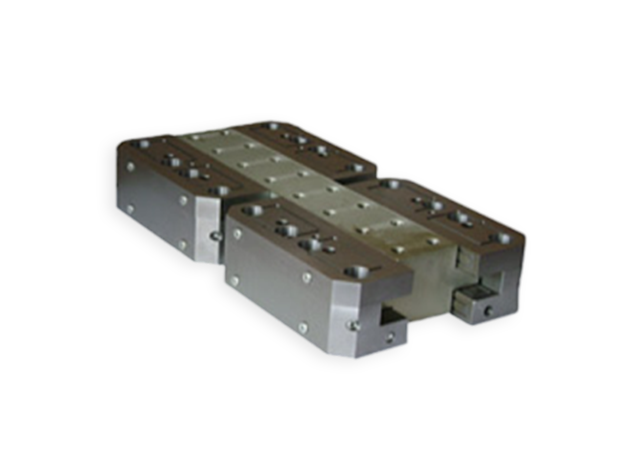

Stand-alone T film bearing
Max. 75mm working travel
Slip table expansion outriggers
Stiffest bearing system available
자동차 및 방산 부품 및 완제품의 진동 시험

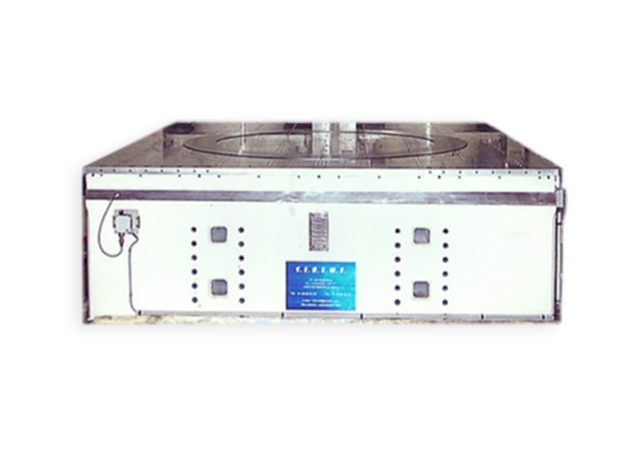

Satellite testing 3m ⅹ 3m table
Suitable for Mil STD 810F 진동 시험
Applications for Stand-alone Hydrostatic bearing
T-film bearing Slip table size and Moment for each axis
| Size L x I mm |
pitch KN.m |
Roll KN.m |
Yaw KN.m |
Moving mass Aluminium 30 (table + bearing moving parts) kg |
|---|---|---|---|---|
| 400 | 9 | 7 | 1 | 20 |
| 800 | 96 | 96 | 50 | 80 |
| 1200 | 200 | 200 | 20 | 180 |
| 1200 | 200 | 200 | 60 | 200 |
| 1500 | 350 | 300 | 30 | 325 |
| 1500 | 350 | 300 | 100 | 340 |
| 1700 | 410 | 350 | 40 | 365 |
| 2000 | 600 | 320 | 120 | 500 |
| 2500 | 900 | 500 | 200 | 800 |
| 3100 | 1300 | 700 | 200 | 1500 |

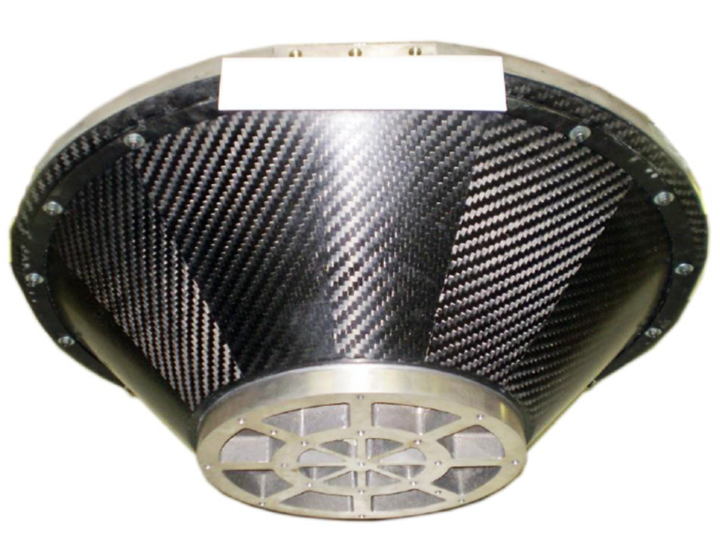

Carbon epoxy composite head expander
Much lighter, Higher damping and lower moment of Inertia
